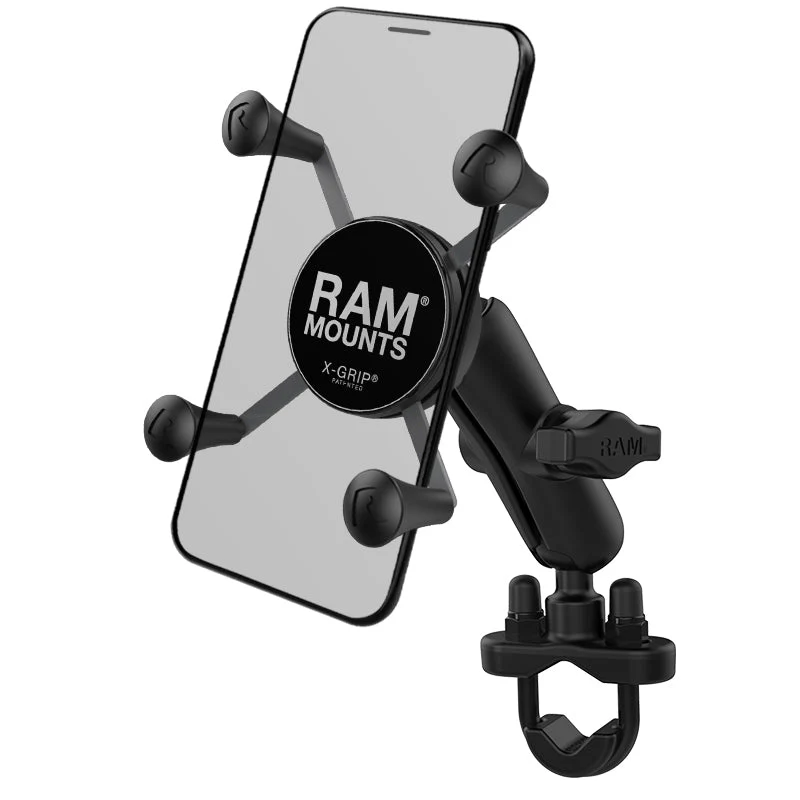

RAM-B-149Z-UN7 is a complete B-size pipe kit with X-Grip holder

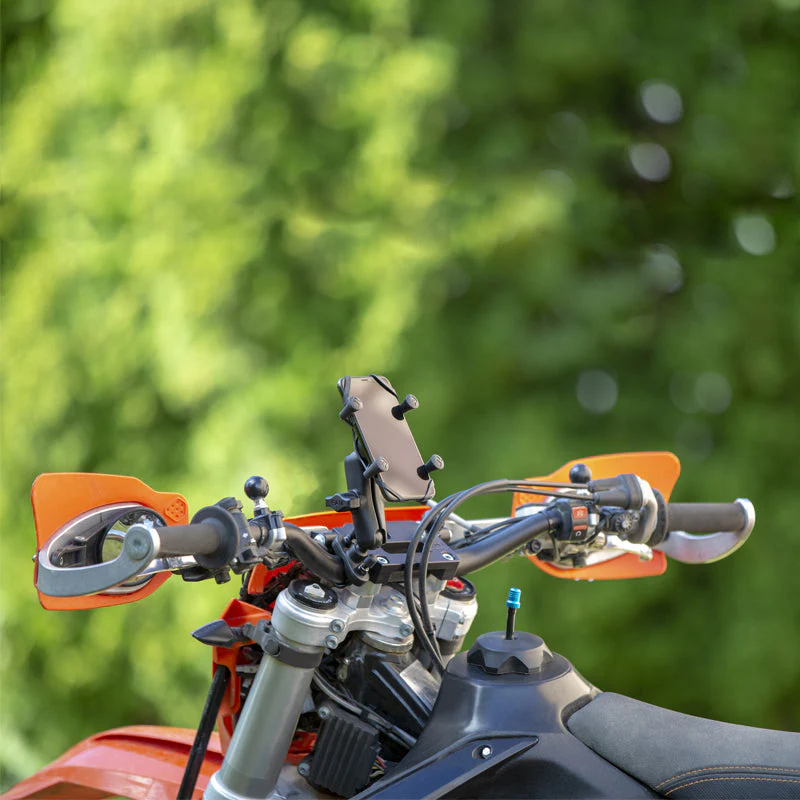

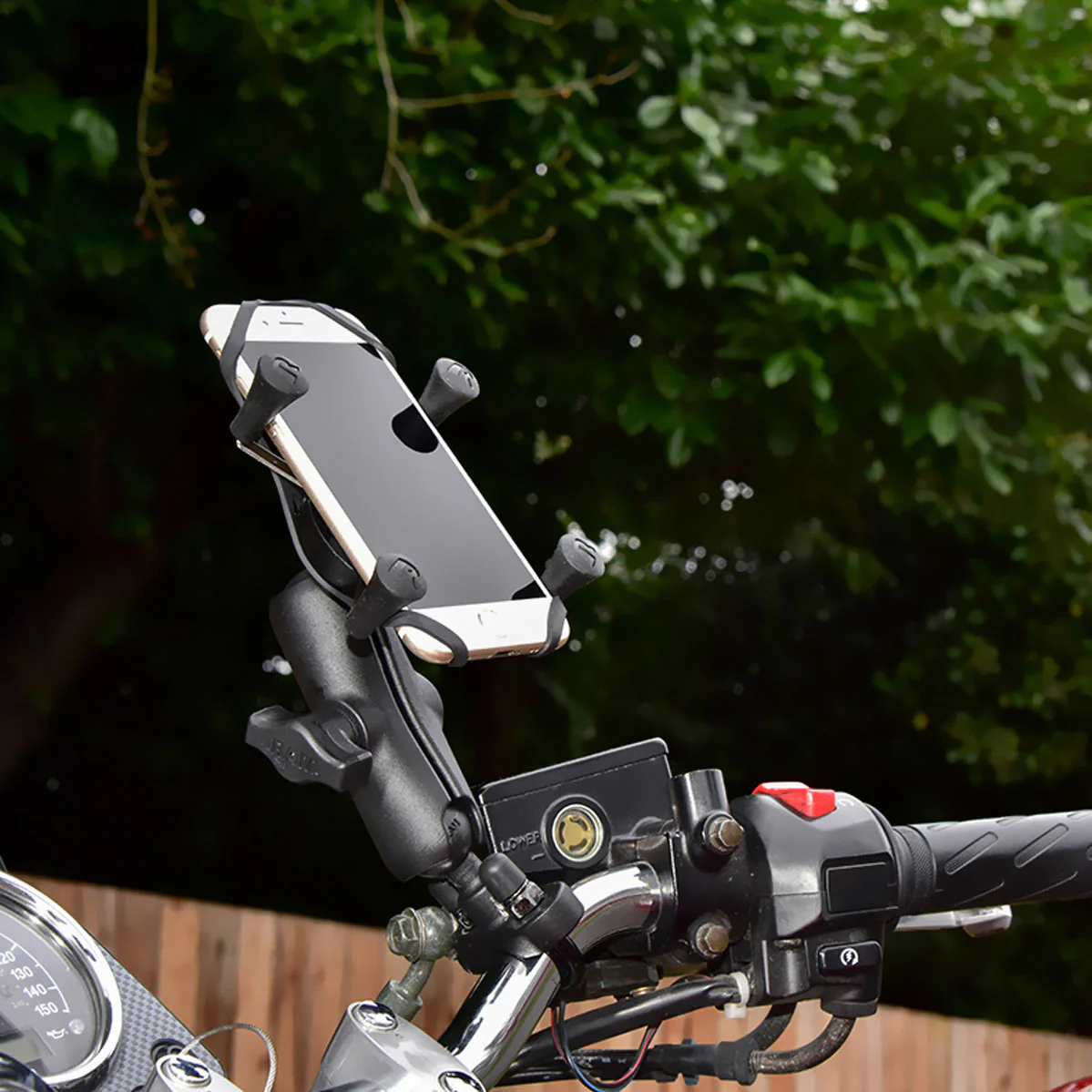

RAM-B-149Z-UN7U is an ideal phone holder for handlebars, consisting of a 1" B-ball attached with a zinc coated U-bolt base. Fits tubes from 0.25" to 1.25" in diameter. Included are black covers to be placed over the exposed ends of the U-bolt, and a composite adapter if needed.

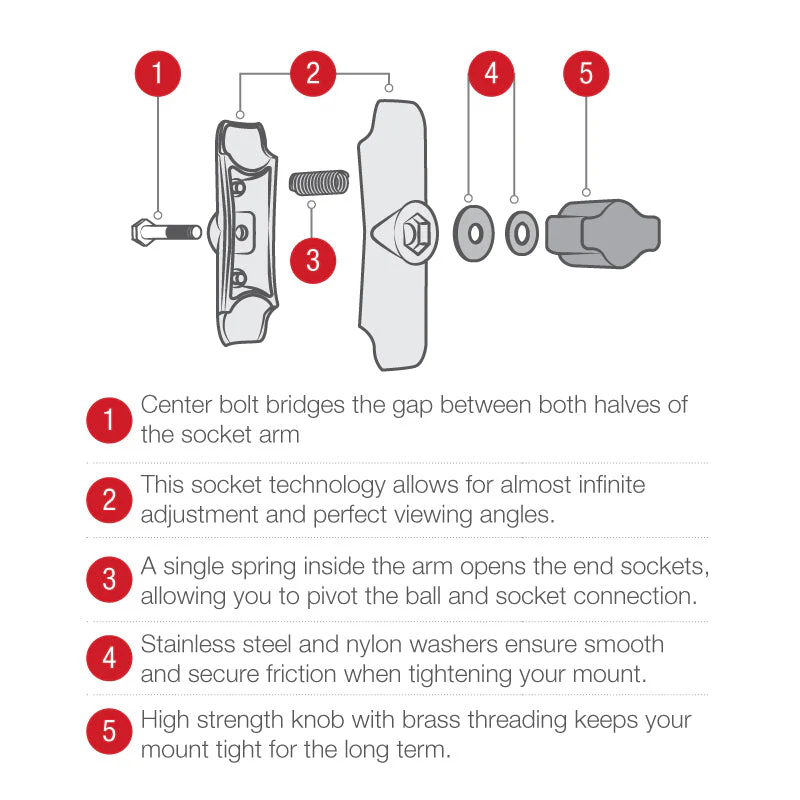

This version of RAM® X-Grip® fits phones from 1.87" to 3.25" in width and keeps your device fully functional and accessible. RAM® ball joint technology allows for almost infinite adjustability to achieve the ideal viewing angle - while extending the life of your phone by providing shock and vibration dampening. Also for outdoor applications.

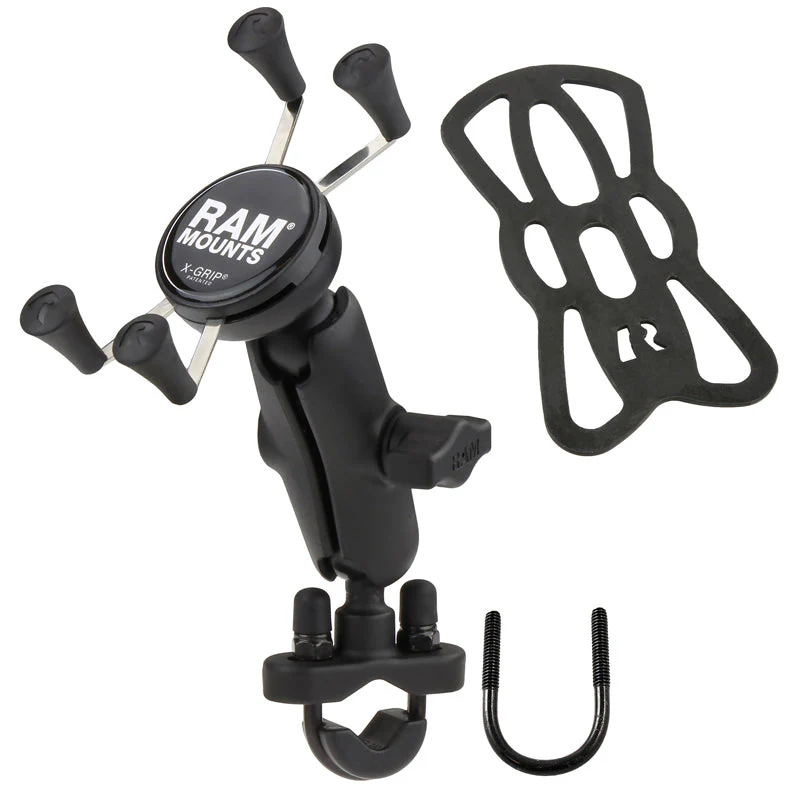

Hardware:

(1) 1/4"-20 U-Bolt for .5" - 1" pipe / 1.27 cm - 2.54 cm

(1) 1/4"-20 U-Bolt for 1" - 1.25" pipe / 2.54 cm - 3.18 cm

(2) 1/4"-20 Locknuts

(2) Rubber caps

(1) U-Bolt shims

Bracket dimensions:

Width range: 1.875" - 3.25" / 4.76 cm - 8.25 cm

Depth range: 0.875" / 2.22 cm max

U-Bolt fits:

Pipe .5" - 1.25" diameter / 1.27 cm - 3.18 cm

Ball Size:

B Size (1") / (2.54 cm)

Weight Capacity:

2 lbs / 0.9 kg

Material:

Marine grade aluminum

Packaging:

Plastic bag

Weight:

0.78 lbs. / 0.35 kg
